how your electric car could help power your neighbourhood
- Written by Alan Brent, Professor and Chair in Sustainable Energy Systems, Te Herenga Waka — Victoria University of Wellington
A new concept – the “grid of grids” – is revolutionising the way we think about energy.
In essence, the grid of grids signifies a shift from a single unified energy network to a collection of smaller networks, capable of operating together or independently as required. It can create a flexible and resilient energy infrastructure that could help contribute to a sustainable future.
In our recent research, we explored the integration of smaller-scale renewable energy systems (microgrids) with a fleet of electric vehicles (EVs).
Under the grid of grids concept, national and international energy infrastructure would become part of a dynamic network. Each point in this network would represent a smaller hub – a community, town or even business district.
EVs would be part of this network, not merely extracting power but actively participating in a reciprocal energy exchange. This approach turns every EV into a decentralised power unit, capable of contributing to and benefiting from the broader energy system.
But how can communities achieve this? Smart community energy solutions are the key.
Understanding microgrids
A microgrid is essentially a self-sufficient energy system that provides power for a particular geographic area, such as a university, hospital complex, business centre or neighbourhood.
Microgrids ensure that even in times of disruptions, communities can keep the lights on. They are flexible, adaptive – and, importantly, they can empower local groups to take control of their energy destiny.
Smart microgrids take this a step further. They leverage advanced information and communications technologies, such as sophisticated sensors and automated control systems, and the Internet of Things (a network of devices that connect and exchange data with other devices and systems over the internet). This enables smart microgrids to optimise energy distribution and ensure efficiency.
Read more: Cyclone Gabrielle: how microgrids could help keep the power on during extreme weather events
Our recent research examined the economic viability of microgrids across all 16 regions of Aotearoa New Zealand using the “Stochastic Microgrid Optimisation Under Uncertain Loads and Distributed Energy Resources” (SMOULDER) web tool.
SMOULDER represents a five-year project that investigated the role of artificial intelligence in optimising microgrids.

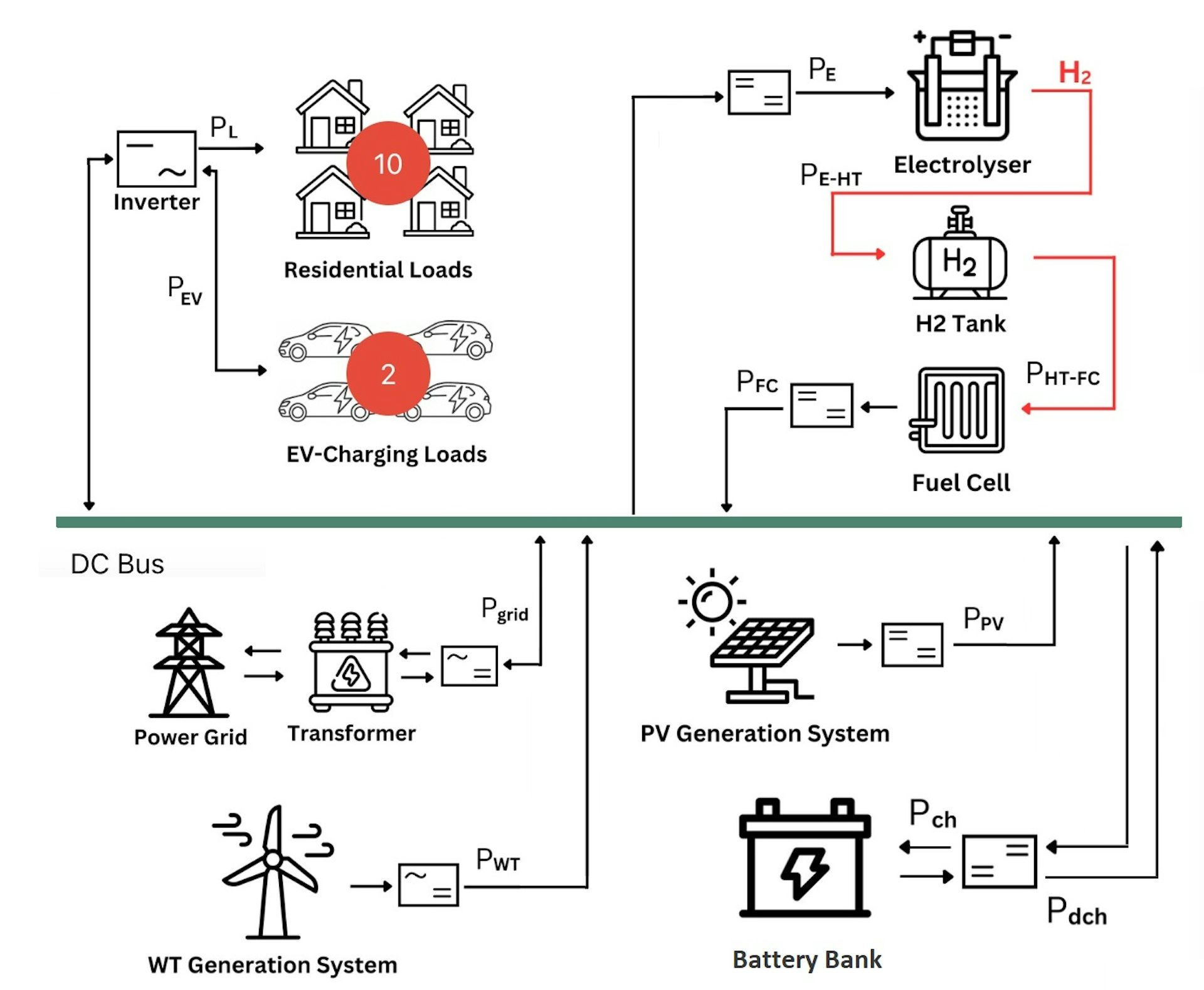

The SMOULDER web tool helps determine the optimal size of various microgrid configurations. The technologies considered are solar panels, wind turbines, batteries and hydrogen microgrids for neighbourhoods and communities. SMOULDER also evaluates the economic impact of EV charging patterns during peak or off-peak times.
How do EVs fit into the puzzle?
When an EV is parked, it can do more than merely wait for its next journey. It can integrate into the local microgrid, actively contributing by channelling unused stored energy back into the system.
This can enhance the efficiency of energy utilisation. It can also allow us to harness the potential of variable renewable sources such as solar and wind.
So, when an EV is not in use, and the local microgrid is experiencing peak demand, it transfers the excess energy back into the grid.
Read more: Floods left thousands without power. Microgrids could help communities weather the next disaster
Conversely, during periods of light load, such as the middle of the night with excess wind power, the EV intelligently charges, ensuring a sustainable and efficient exchange within the community microgrid.
This strategic and dynamic interaction optimises energy usage within the community microgrid, providing both economic and environmental benefits.
V2G (Vehicle-to-Grid) and bidirectional charging — an innovative approach empowering electric vehicles to actively contribute to the energy grid.A buffer against fluctuating prices
Microgrid solutions, enhanced by the collaboration with EVs, offer a pathway to significant cost savings. By harnessing local, renewable resources, these systems reduce reliance on centralised power grids, mitigating the impact of fluctuating energy prices.
The grid of grids concept enables microgrids to achieve greater economic self-sufficiency, establishing a buffer against the uncertainties of the broader energy market.
Establishing microgrids and building towards the grid of grids has a cost that will need to be managed by individuals, organisations and communities. But once established, these grids will have broader benefits as Aotearoa New Zealand moves towards a sustainable future.
This article was written with the assistance of Dr Soheil Mohseni, Senior Energy Forecasting Analyst at Ausgrid and Research Fellow, Te Herenga Waka — Victoria University of Wellington
Authors: Alan Brent, Professor and Chair in Sustainable Energy Systems, Te Herenga Waka — Victoria University of Wellington
